Author：Beijing Pauway Energy Technology Co., LtdTime：March 22 2020Hist：
50Hz
PAUWAY-SME series

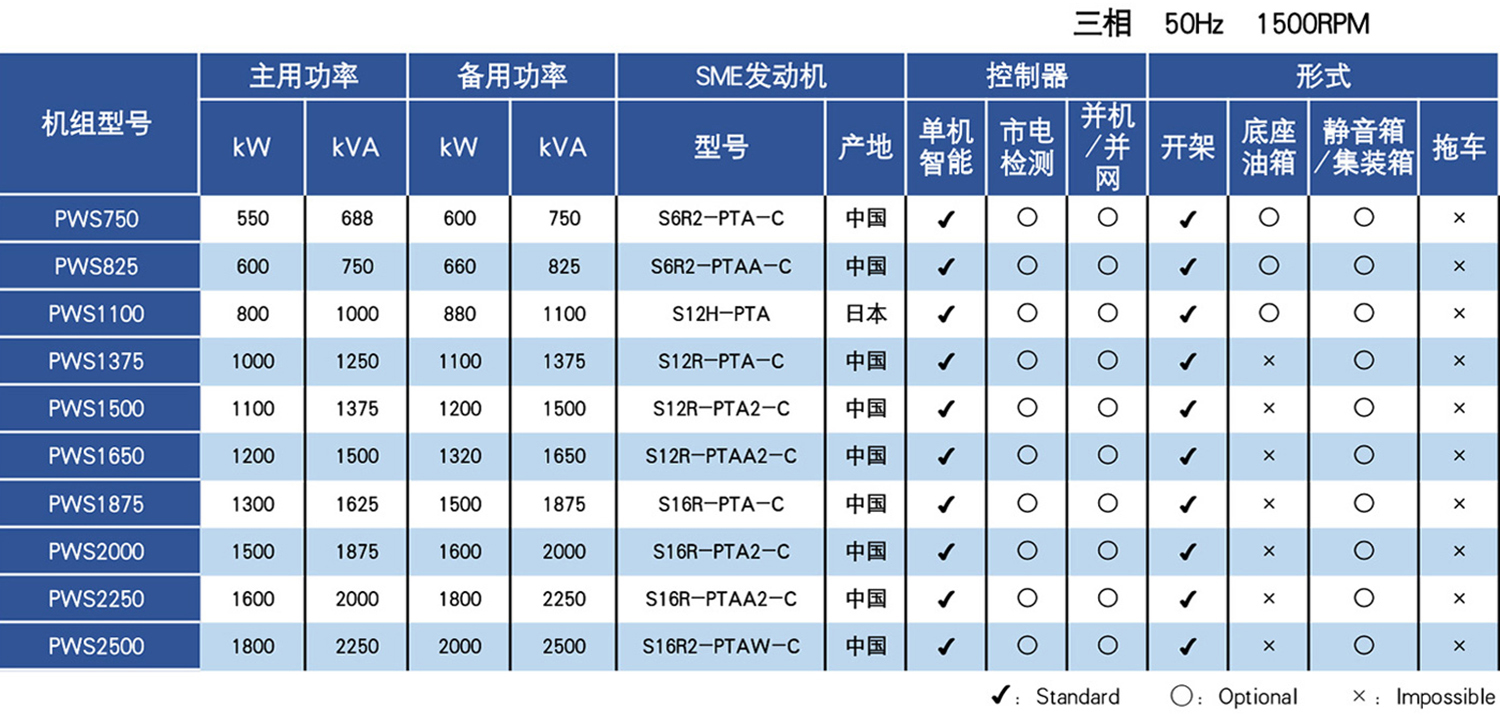

Diesel generator set type spectrum
The PWS Series - uses SME brand engines from a joint venture between China and Mitsubishi, with the option of Stamford, Marathon or Leroy-Somer alternators
Voltage optional: 380V/400V/415V/480V/6.3kV/10.5kV (special voltage can be customized)
Remark:
All ratings are for reference only, please refer to the specific generator set technical data sheet for final power ratings.
All rating data are based on ISO 8528-1, 1SO 3046, DIN6271 operating under conditions using typical fan sizes and gear ratios. PAUWAY quotes a performance tolerance of ±5%.
Prime power = power under available load instead of the main grid. 10% overload is allowed for one hour of operation every 12 hours.
Standby power = power available under variable load in the event of a failure in the main grid, up to 500 hours per year. Overload is not allowed.
Rated power factor: 0.80.
N/A: Not available.
PAUWAY reserves the right to change models, technical specifications, colors, configurations and accessories without prior notice. Please contact our sales team before ordering.
